Ensuring smooth collaboration between multiple disciplines in a Revit project depends on the effectiveness of shared coordinates that maintain positioning consistency between linked models. To protect against inadvertent changes to these shared coordinates, it would be prudent to investigate the implementation of warning mechanisms similar to those used for the project base point.
Similar to the protective measures applied to the project base point, providing prompts or warnings when attempting to modify shared coordinates could serve as a vital reminder for users. These warnings could effectively communicate the potential consequences on linked models, encouraging users to exercise careful and thoughtful decision-making.

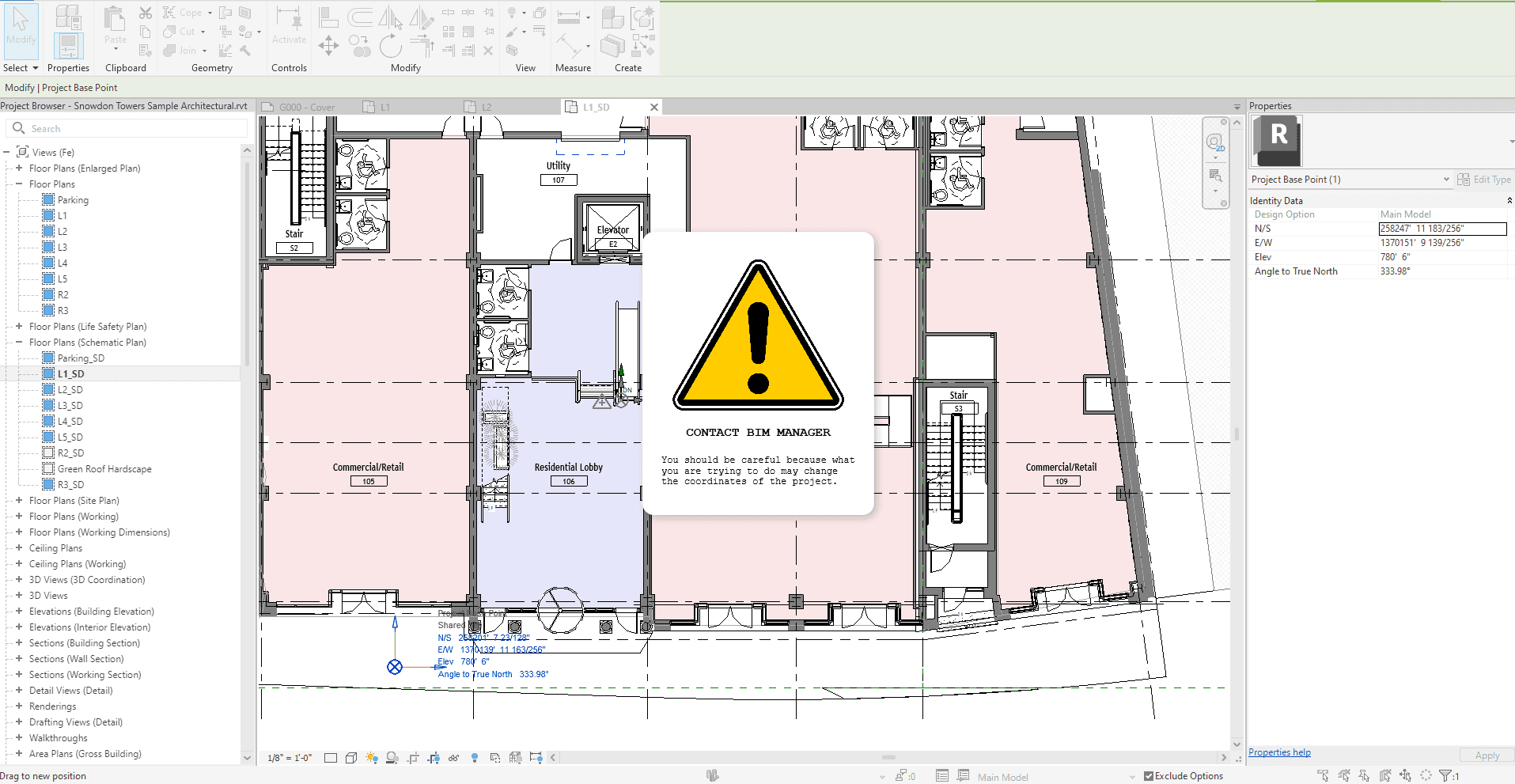

For example, when a user attempts to relocate a protected project base point, a warning message immediately warns them not to do so. Similarly, attempting to remove a project basepoint would trigger a protective command message and prompt users to enter a designated password to continue the action.
Monitoring Model Changes
large size families
Importing cad
Inplace family
saving and syncing activitie
Tracking changes within a Revit model is essential for maintaining an audit trail and identifying potential security breaches. Utilize Revit's built-in version control features to monitor revisions and track modifications made by users. Additionally, consider integrating third-party auditing tools that provide comprehensive insights into model changes, including user activity logs and revision histories. By proactively monitoring model changes, organizations can detect unauthorized alterations and take appropriate corrective actions.
What is the hook events?
Hooks provides a structure that listens for certain events and triggers defined functions when these events occur. For example, you can have a function run when an item is selected or a command is started.
import clr
clr.AddReference('System.Windows.Forms')
clr.AddReference('IronPython.Wpf')
clr.AddReference('System.Drawing')
import json
import math
import re
from collections import namedtuple
clr.AddReference('System')
from System.Collections.Generic import List
import System
clr.AddReference("System.Net")
from System.Net import WebClient, HttpRequestHeader
import webbrowser
import wpf
from System import Windows
from pyrevit import revit, EXEC_PARAMS, forms, script
from Autodesk.Revit.UI import TaskDialog
from pyrevit.forms import ask_for_string
from pyrevit import script
from Autodesk.Revit.DB import FilteredElementCollector, BuiltInCategory, Transaction
from pyrevit import revit, EXEC_PARAMS
import os, sys, datetime
from Autodesk.Revit import DB
from Autodesk.Revit.DB import *
from Autodesk.Revit.UI import *
from Autodesk.Revit.DB.Architecture import *
from System.Drawing import Image, Point
from System.Windows.Forms import Application, Form, PictureBox, FormStartPosition
import System.Windows.Forms as WinForms
import System.Drawing as Drawing
from datetime import datetime
sender = __eventsender__
args = __eventargs__
doc = revit.doc
logger = script.get_logger()
xamlfile = script.get_bundle_file('AboutWindow.xaml')
client = WebClient()
AIRTABLE_BASE_ID = "appLys60ZA6crVha1"
AIRTABLE_TABLE_NAME = "revit-table"
AIRTABLE_API_KEY = "patYXUjpCrz1g1jWl.63ca523eb1d45cd66a801662a2849186cdba9be4d5b43e2d563a00d6438adbbf"
url = "https://api.airtable.com/v0/{}/{}".format(AIRTABLE_BASE_ID, AIRTABLE_TABLE_NAME)
name = __revit__.Username
app = __revit__
version = app.VersionNumber
request = str("Coordinates")
gun = datetime.today()
date = gun.strftime("%Y-%m-%d")
class AboutWindow(Windows.Window):
def __init__(self):
wpf.LoadComponent(self, xamlfile)
def _get_logo_image(self):
print("test")
return
path = os.path.dirname(os.path.abspath(__file__))
logo = os.path.join(path, 'icon.png')
yellowbitmap = System.Windows.Media.Imaging.BitmapImage()
yellowbitmap.BeginInit()
yellowbitmap.UriSource = System.Uri(logo)
try:
yellowbitmap.EndInit()
return yellowbitmap
except System.IO.FileNotFoundException as e:
logger.error(e.Message)
else:
return yellowbitmap
def handleclick(self, sender, args):
self.Close()
def make_request(name,request,version,date):
data = {
"records": [
{
"fields":{
"Name": name,
"Request": request,
"Version" : version,
"Date" : date
}
}
]
}
client.Headers[HttpRequestHeader.ContentType] = "application/json"
client.Headers[HttpRequestHeader.Authorization] = "Bearer {}".format(AIRTABLE_API_KEY)
client.UploadString(url,json.dumps(data))
make_request(name,request,version,date)
args = EXEC_PARAMS.event_args
"""
# Get pbp values
pbp_ew = pbp.get_Parameter(BuiltInParameter.BASEPOINT_EASTWEST_PARAM).AsDouble() * 304.8
pbp_ns = pbp.get_Parameter(BuiltInParameter.BASEPOINT_NORTHSOUTH_PARAM).AsDouble() * 304.8
pbp_el = pbp.get_Parameter(BuiltInParameter.BASEPOINT_ELEVATION_PARAM).AsDouble() * 304.8
pbp_an = pbp.get_Parameter(BuiltInParameter.BASEPOINT_ANGLETON_PARAM).AsDouble() * 180/math.pi
"""
try:
mod_elems = __eventargs__.GetModifiedElementIds()
for i in mod_elems:
ele = doc.GetElement(i)
elem = ele.ToString()
if elem == "Autodesk.Revit.DB.ProjectLocation":
AboutWindow().ShowDialog()
else:
continue
except:
print("okey")

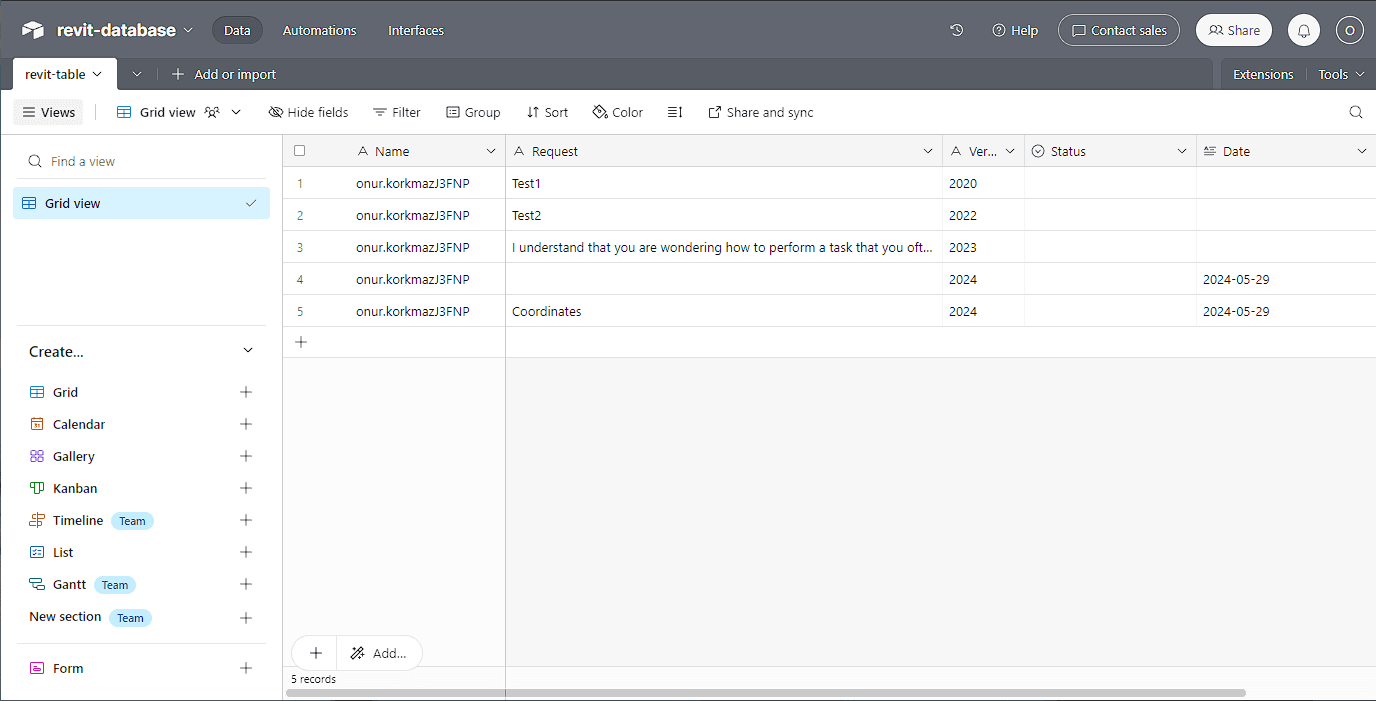

Connect with Database
